TDDL15 3021
FEATURES
- Twenty-four high intensity Star Generation IV LEDs (8 arrays, 3 LEDs per array)
- Made from durable extruded aluminum, these Traffic Directors will not warp or bend
- Micro processor control unit offers four modes with distinctive flash options
- Polycarbonate face shield allow for easy cleaning
- Specific models are available with mounting brackets designed for Chevy Tahoe (TDDL15-42TA with a standard 22’ wire harness on passenger
side), Ford Crown Victoria (TDDL15-47CV with a standard quick-disconnect 15’ wire harness)
- Ships complete with back lit control unit, attached quick disconnect wire harness, mounting brackets, hardware, and instructions
SPECIFICATIONS
- Voltage: 10-16V DC
- Amp Draw: 3.0 amps
- Cable Lengths: 15’, 22’, 30’, 45’, 60’
See online catalog for Specifications list and Vehicle Mounting Specifications
MODELS
- TDDL15-36
- TDDL15-47
- TDDL15-42
- TDDL15-47CV
- TDDL15-42TA
Key:
36 - 36”
42 - 42”
47 - 47”
CV - Crown Victoria
TA - Tahoe Traffic Director
Replacement Parts:
Control unit..............................................TD77-2
TDDL15-42TA bracket mount kit...........TD92-7KTA
TDDL15-47 bracket mount kit................274-LLBK
TDDL15-47CV bracket mount kit...........DL15-BKTCV
Add On:
Multi-feature controller............................TDC-3
DOCS & RESOURCES
TDDL15 Traffic Directors - Manual

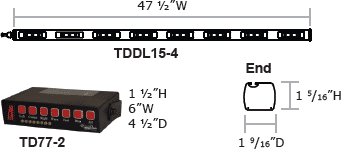

TDDL15 LED Traffic Directors Model Drawing
TDDL15-42TA LED Traffic Directors Model Drawing
TD77-2 Traffic Director Control Box - Manual
