DLITE, DLITS, DLIT3E, DLIT3S Micro-Star® LED Lights
Product Code: DLITE, DLITS, DLIT3E, DLIT3S, DLIT3
Zoom and Alternate Views

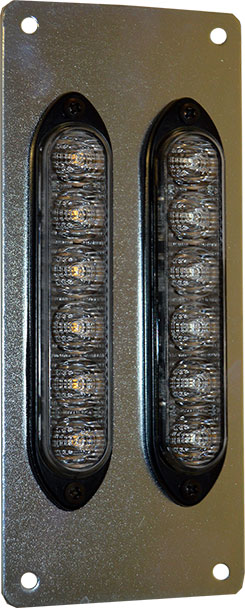

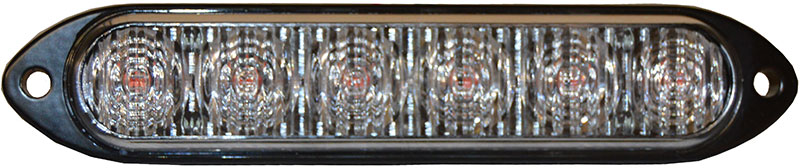

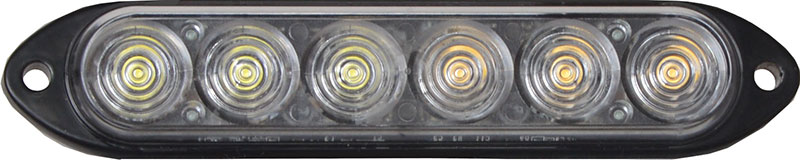

DLITE and DLITS Micro-Star®
- Ultra low profile
- Six super bright Star Generation V LEDs
- 12 different selectable flash patterns in either of two phases, plus steady-on
- Robust design, die cast aluminium base
- Endless mounting possibilities
- Single and split color models
- Current limit protection over entire operating voltage
- Standard four wire hook-up
- S-Link System™ synchronizing capabilities with other Star LED units
- Optional chrome or white bezels available

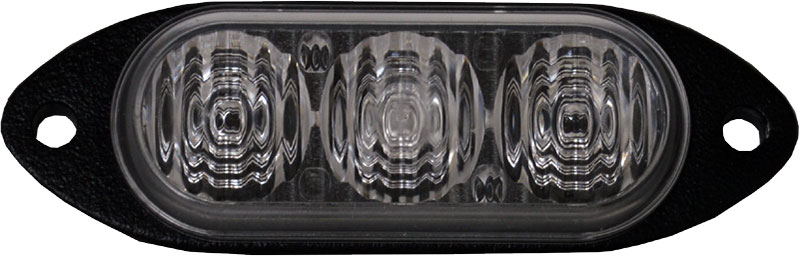

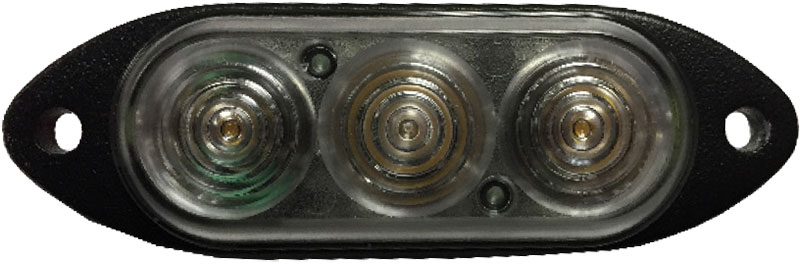

DLIT3E and DLIT3S Micro-Star®
- Ultra low profile
- Three super bright Star Generation V LEDs
- 12 different selectable flash patterns in either of two phases, plus steady-on
- Robust design, die cast aluminium base
- Endless mounting possibilities
- Current limit protection over entire operating voltage
- S-Link System™ synchronizing capabilities with other Star LED units
DLITE and DLITS Micro-Star®

Dimensions: 1”H x 4 3/16”W x 25/64”D
Voltage: 10-30V DC
Amp draw: 0.75 amps
Approvals: SAE Class I, CA Title 13 available where applicable
* approvals only apply when properly configured

DLIT3E and DLIT3S Micro-Star® Dimensions

Dimensions: 1”H x 3 1/16”W x 7/16 ”D
Voltage: 10-16V DC
Amp draw: 0.3 amps

Approvals:
DLIT3E: SAE Class II (amber, blue, red, white)
DLIT3S: SAE Class I (amber, blue, red, white)
* approvals only apply when properly configured

DLITE -** Six array LED head, wide spread optic
DLIT3E -* Three array LED head, wide spread optic

DLITS -** Six array LED head, spot optic
DLIT3S -* Three array LED head, spot spread optic

274-DLIT-RL License plate bracket for two DLIT’s
274-DLIT-CLP Hood clip mounting bracket for DLIT's
274-DLIT-RB Chevy Tahoe running board bracket for DLIT's
274-DLIT-RT Adhesive bracket for DLIT's
274-DLIT-GRL Grill bracket for DLIT's
274-DLIT-GTA 2021 Chevy Tahoe Grille Bracket

274-DLIT-LPB4 License plate bracket for four DLIT’s
274-DLIT-U Universal bracket for DLIT’s
274-DLIT-W Window adhesive bracket
274-DLIT3-U Universal bracket for DLIT3's
30019-314 DLIT Shim kit
P30019-289P Chrome bezel add on
P30019-289W White bezel add on

DLITE & DLITS Micro-Star® LED Light - Product Flyer

DLITE & DLITS Micro-Star® LED Light - Manual

DLITE & DLITS Micro-Star® LED Light - Model Drawing

DLIT3E & DLIT3S Micro-Star® LED Light - Model Drawing

274-DLIT-CLP Micro-Star® Hood Clip Bracket - Manual

274-DLIT-GRL Micro-Star® Grill Bracket - Manual

274-DLIT-RB Micro-Star® Chevy Tahoe Running Board Bracket - Manual

DLIT Shim - Model Drawing

DLITS-RB

DLITS-BB

DLITS-AA

DLITE-RB-1

DLITE-RB

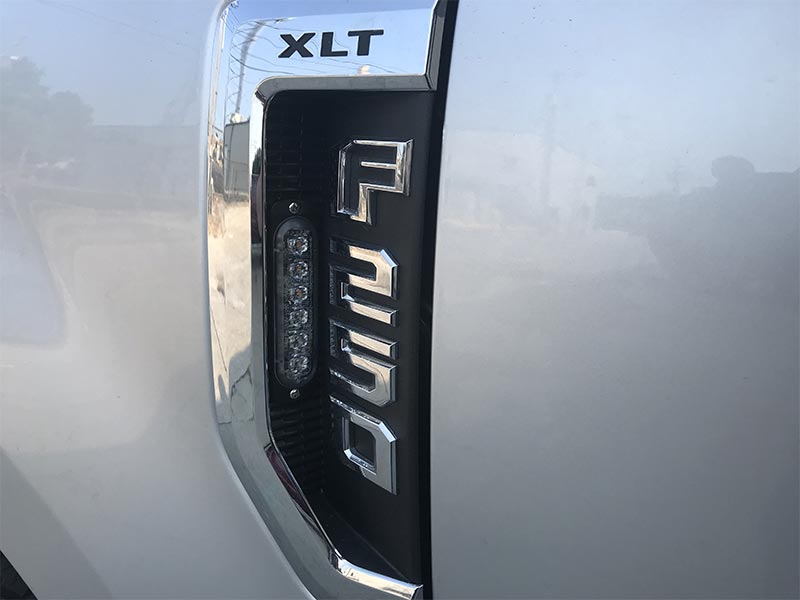

DLITE on Ford F250
