LCS850MG12 Command Center 200 Watt

STAR NEWS & EVENTS

Grote Industries Acquires Star Headlight & Lantern Co, Inc.

17-Apr-2023 - Grote Industries Acquires Star Headlight & Lantern Co, Inc.Acquisit...

  • LCS850MG12 Command Center 200 Watt


    Product Code: LCS850MG12
    California P65 Cancer Warnging

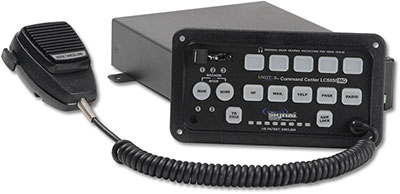

    LCS850MG12 Command Center 200 Watt
    Zoom and Alternate Views

    Key Features

    • Gun Lock password-enable or ignition-enable
    • LED diagnostics: Speaker drivers active, over/under voltage, speaker shortage, and park kill active
    • Seven siren tone options: Wail, Yelp, Phaser, Two-Tone, Manual, Air Horn, and Rapid Air Horn
    • Integrated public address microphone with user adjustable volume at control head
    • Euro style connectors allow for quick and easy installation
    • Dual color backlighting on keypad (Green and Red)
    • Built in horn ring transfer (HRT)
    • Dual 100 watt outputs (200 watts total)
    • 10 outputs, fused at 20 amps each
    • Flange or flush mount

     Utility and Reliability Features

    • 0mA standby current, will not drain battery
    • Over/under voltage and reverse polarity protection
    • Independently fused outputs
    • I/O lines are RFI protected
    • Large input filter capacitor eliminates RFI
    • Customizable user interface
    • Magnetically isolated radio repeat input
    • Self-resetting circuit protection against speaker shorts



    • Size:
      - Control Head: 7-7/8 "H x 4-1/4"W x 1-1/8"D
    • Flanged
      - Control Head: 6-3/4"H x 3-1/4"W x 1-1/8"D
      - Amplifier Box: 2-1/8"H x 7-5/8"W x 9-7/8"D
    • Weight: 7 lbs.
    • Output: 100 or 200 Watts (1 or 2 speakers)
    • Voltage: 10V - 16V DC
    • Frequency: 675-1633Hz
    • Amp Draw: 8 Amps (per speaker) 140 Amps Max (lighting
    • Approvals: Exceeds Acoustical and environmental requirements of SAE J1849*, California Title 13 Class A* (* when used with SVP drivers)

    • LCS850MG-12
    • LCS850MG-F12




    LCS850MG Siren Amplifier & Light Controller - Manual LCS850MG Siren Amplifier & Light Controller - Manual

    LCS850MG12 Command Center Siren - Product Flyer LCS850MG12 Command Center Siren - Product Flyer

    LCS850MG - Programming Software LCS850MG - Programming Software

    Siren Config Utility Siren Config Utility

    Alert

    Horn

    Manual

    Phaser

    Two Tone

    Wail

    Yelp

    HF Auto Sweep

    Quick Shot

    Magnum Horn

    Magnum Manual

    Magnum Yelp and Step Up

    Magnum Phaser and Step Up

    Magnum Wail and Step Up
