  • LED HIDE-A-STAR™ In-Line

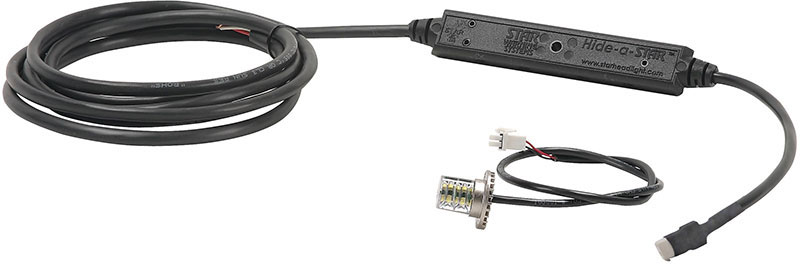

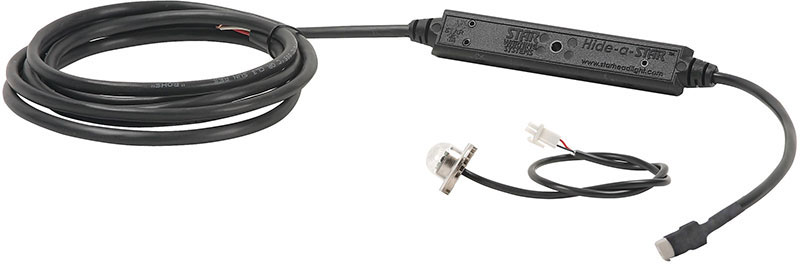

    Product Code: LDHF301, LDHF311
    California P65 Cancer Warnging
    LED HIDE-A-STAR™ In-Line
    Zoom and Alternate Views
    • Self-contained, LED flashing circuitry
    • 12 different selectable flash patterns in either of two phases, plus steady-on
    • S-Link System™ synchronizing capabilities with other Star LED units
    • Spherical LED heads are designed with diffusing optic for extremely wide angle light
    • Optics, boost and concentrate light for maximum LED output
    • Easily replace standard hide-a-way remote strobe tubes with 1” mount holes
    • Nickel plated aluminum housings allow for our advanced thermal heat management
    • Customer changeable colored lenses (with white kit only), giving these LED lights versatility in the field



    • Voltage: 12-24V DC
    • Amp Draw: 0.5 amps per head (max)

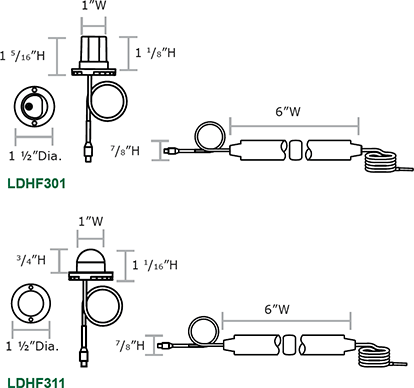

    See online catalog for Specifications list and Vehicle Mounting Specifications

    • LDHF301-*-10
    • LDHF311-*-10
    • LDHF301-*-30
    • LDHF311-*-30
    Key:

    10 - 10’ cable
    30 - 30’ cable

    Replacement Parts:

    Replacement head with connector.......................SLDH300C-*
    Spherical replacement head with connector........SLDH310C
    Three color lens kit for spherical heads...............P30129-50K
    Single color lens for spherical heads...................P30129-50*
    Three color lens kit for directional heads............P30129-47K
    Single color lens for directional..........................P30129-47-*
